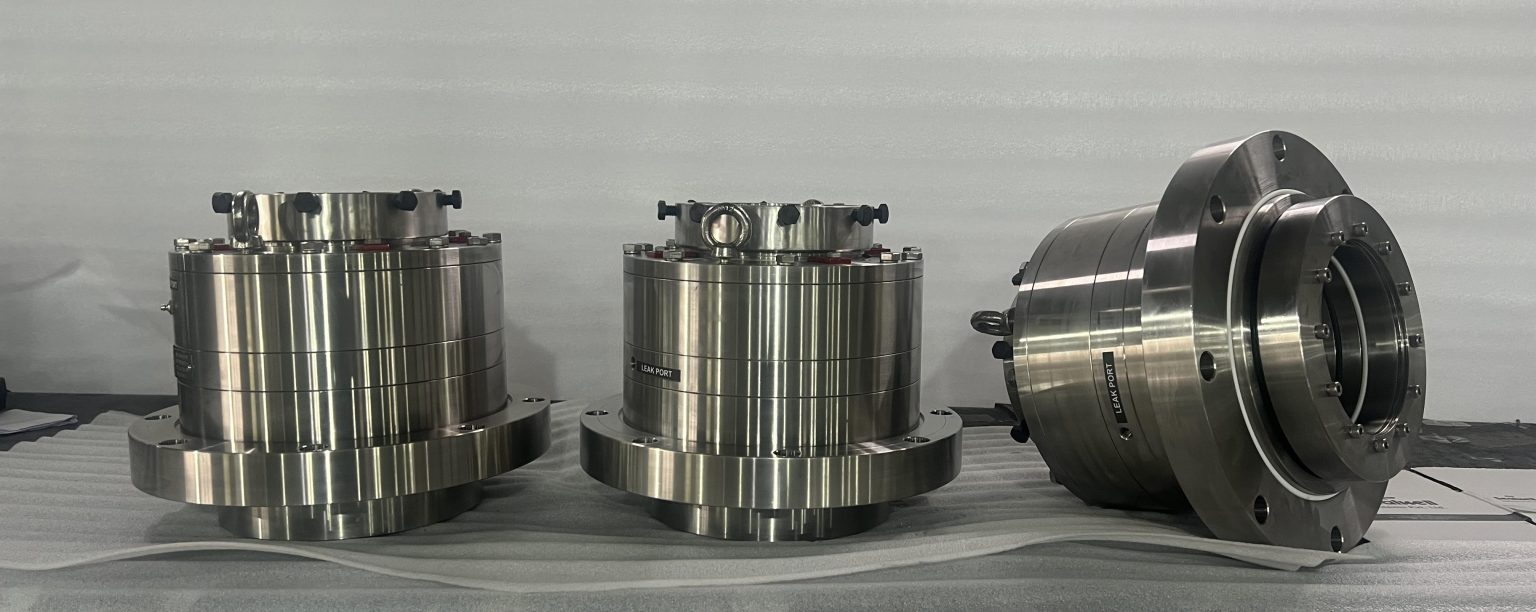

Seal Type: 1PD-10U/10U, 1PD-10B/10U
Double Wet cartridge Mechanical Seal for Horizontal Shaft are mainly used for RVPD & PSMD application. Floating collect arrangement is provided to take the shaft expansion which may occur due to temp. These seals can be used Dry at low temp. & speed. It has robust design support by Double Roller bearing in case of any shaft deflection which may arise during the process.
Specifications:
- Shaft Dia: 50.00 to 280.00 MM
- Pressure: Up to 8 Kg/Cm2
- Temp.: -25 to 220 Deg. C.
- Speed in RPM: 2-12
- Contact Parts: SS 316, HC-276, HC-22
- Seal Ring: Carbon, SIC
- Mating Ring: SIC
- Secondary Sealing: FKM, FFKM, PTFE, FEP
- Circulation: TS Pot
# Special Note: Double DRY cartridge Mechanical Seal can also be manufactured for low RPM application.
